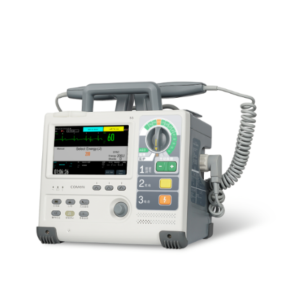

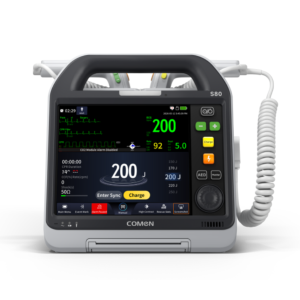

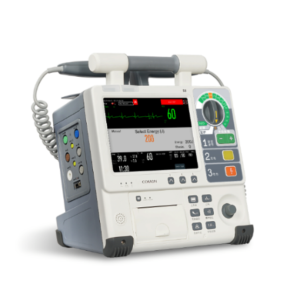

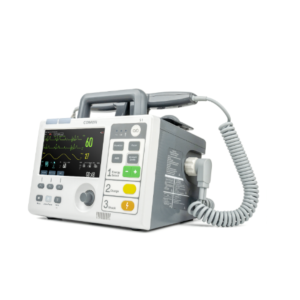

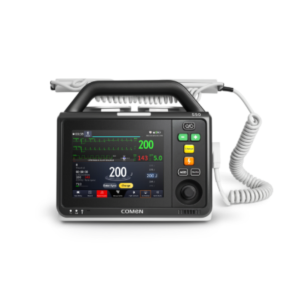

I.  Product Overview

This device is simple to operate and safe and convenient to use; equipped with a high-definition large-screen LCD color display for intuitive feedback; it uses biphasic waveform technology to reduce damage to the myocardium during treatment; suitable for various occasions such as hospitals, emergency centers, and public places, providing emergency treatment for patients with cardiac arrest.

II.  Key Features

Biphasic Technology

With impedance compensation More effective, Less Energy and less hurt to the heart.

Paddle

Charging and shocking can be easily operated through according buttons.

Quickly converted from adult to pediatric by removing the outer surface.

Data Storage

65 hours of all measured parameters.

Internal Thermal Printer

50mm integrated thermal recorder.

Battery Level Indicator

To monitor the battery real time.

III.  Technical Specifications

Display

Display Type: 8 inch high resolution LCD display.

Sweep Speed: 25mm/sec.

Information: HR, Lead/Pads, On/Off Alam, SpO2, AED Functions and Prompts, Alarm Selection and Limits, Delivered Energy.

Defibrillator

Waveform: Biphasic.

Charge Time: Less than 7 seconds with a new fully charged battery.

Energy Display: Monitor display indicates both selected and delivered energy.

Charge Prompt Type: Voice and visual prompts.

Electrode lmpedance Measurement Range: 0-250 ohms.

ECG Monitoring

Patient Connection: 5-lead ECG cable, or 3-lead ECG cable, paddles.

Lead Selection: Displayed on monitor, paddles, l, ll, ll, AVR, AVL, AVF, V.

ECG Size: 0.25,0.5,1,1.5,2,4 cm/mV diplay on monitor.

Heart Rate:20-300BPM.

Heart Rate Alarm: On/Off displayed on monitor, user-selectable

Smart Alarms: Beeper/voice prompts indicate shockable rhythm.

Recorder

Paper: 50mm thermal.

Speed:12.5mm/sec,25mm/sec, 50mm/sec.User-selectable 6-second delay.

Printing Method: High-resolution, thermal print head.

Print-out Modes: Manual or automatic, user-configurable.

On/Off Control: Front panel and paddle.

Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.

Battary

Type: Rechargeable, Ni-MH battery, 12V.

Operating Time: For a new, fully charged battery: 60 defibrillator discharges at maximum energy, or 3 hours minimum of continuous ECG monitoring.

Additional parameters will effect operating time with different functions.

AED Mode

AED Function: Auto analyze and charge X3 with programmable auto energy level selection, screen prompts, and voice prompts.

Shockable Rhythms: Ventricular fibrillation with amplitude >=200UV, ventricular tachycardia with rates >=140bpm, and QRS complex wave duration >=140ms.

Charge Control: Control on device front panel, press key on paddle.

Prompts: Voice and visual prompts.

Manual Mode

Energy Selection: Selectable at 2,5,7,10,20,30,50,70,100,150,200,300,360 joules.

Synchronized Mode: Synchronizes defibrillator pulse to patient's R-wave. "SYNC" message displayed on monitor

IV． Company Information

Company Profile

Shubaoda is a professional medical equipment and solutions provider in China. The company has established a professional supply chain team and sales team, with team members boasting over 10 years of industry experience. Shubaoda integrates over a hundred well-known research and medical equipment brands to provide customers with highly competitive, high-quality, and cost-effective medical equipment and "one-stop product supply" services. The company's products are mainly exported to Southeast Asia, the Middle East, Africa, South America, and other countries and regions.

Main products

Color Doppler Ultrasound Machines, Patient Monitors, Electrocardiographs, Biochemical Analyzers, Infusion Pumps, Anesthesia Machines, Automated External Defibrillators (AEDs), High-Frequency Electrosurgical Units (ESUs), Bone Densitometers, etc.

Certifications

The medical equipment products distributed by our company have all obtained China Medical Device Registration Certificates, comply with China's medical device export standards, and most products hold CE and FDA certifications.
