I. Product Overview
A 12 Channel ECG Machine is an advanced medical diagnostic device capable of simultaneously capturing and analyzing electrocardiogram (ECG) signals from twelve different leads of the heart. This equipment is essential for diagnosing various heart conditions, such as arrhythmias, myocardial infarction, myocarditis, and other cardiac statuses.
II. Key Features
1. 12-lead simultaneous ECG display;
2. High-speed, high-sensitivity hot spot recording system;
3. Accurate automatic ECG diagnostic function;
4. Lead disconnection indication and paper-out prompt function;
5. Rich set of quick function keys for smart and convenient operation;
6. Highlights critical values in critical diagnostic results for timely treatment;
7. Powerful data management system provides support for clinical research;
8. Supports high-resolution thermal printing with paper specifications of 216mm*20mm.
III. Technical Specifications
|
ltems |
Specification |
|
Lead |
Standard 12 leads |
|
Acquisition Mode |
Simultaneous 12 leads acquisition |
|
Input Impedance |
≥50MQ |
|
Input circuit current |
≤0.0.05μA |
|
EMG Filter |
25Hz/35Hz/45Hz/75Hz/100Hz,-3dB |
|
CMRR |
>80dB;>100dB(Filterin use) |
|
Patient current leakage |
<10μA |
|
Input Circuit Current |
<0.1μA |
|
Frequency Response |
0.05Hz~150Hz(-3dB) |
|
Sensitivity |
1.25,2.5,5,10,2040 mm/mV±2% |
|
Anti-baseline Drift |
Automatic |
|
Time constant |
≥3.2s |
|
Noise level |
<15μVp-p |
|
Paper speed |
5,6.25,10,12.5,25,50 mm/s±2% |
|
Recording mode |
Thermal printing system |
|
8dot/mm(vertical)40dot/mm(horizontal,25mm/s) |
|
|
Record paper specifications |
216mm*20m/25m or Type Z paper |
IV． Company Information
Company Profile
Shubaoda is a professional medical equipment and solutions provider in China. The company has established a professional supply chain team and sales team, with team members boasting over 10 years of industry experience. Shubaoda integrates over a hundred well-known research and medical equipment brands to provide customers with highly competitive, high-quality, and cost-effective medical equipment and "one-stop product supply" services. The company's products are mainly exported to Southeast Asia, the Middle East, Africa, South America, and other countries and regions.
Main products

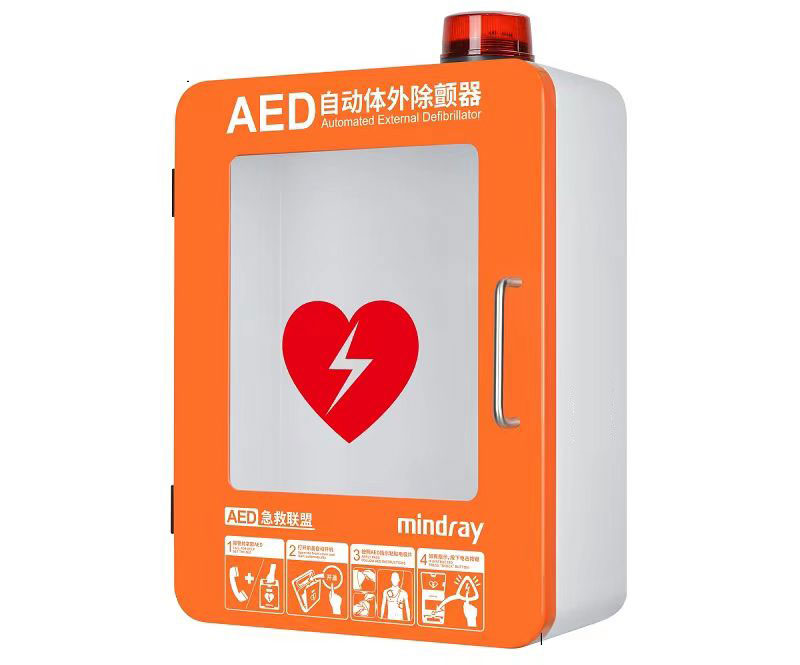

Color Doppler Ultrasound Machines, Patient Monitors, Electrocardiographs, Biochemical Analyzers, Infusion Pumps, Anesthesia Machines, Automated External Defibrillators (AEDs), High-Frequency Electrosurgical Units (ESUs), Bone Densitometers, etc.
Certifications
The medical equipment products distributed by our company have all obtained China Medical Device Registration Certificates, comply with China's medical device export standards, and most products hold CE and FDA certifications.
We have the latest medical device product database in China, which can quickly meet your procurement needs.
Submit your purchase list, and we will reply to your inquiry within half an hour at the earliest.
