Specifications

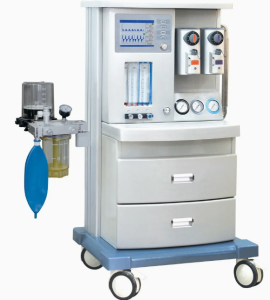

Anesthesia ventilator

·        Pneumatically driven electronically controlled system

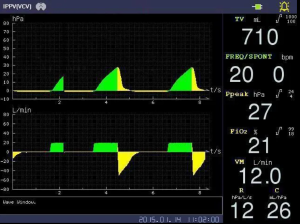

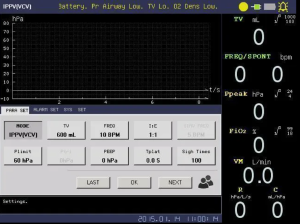

·        Built-in ventilator, 10.4” LCD display

·        With 1 patient circuit for adult (Optional:patient circuit for children)

·        5-tube flowmeters, O2 & N2O & Air;0.1L/Min ~ 10 L/Min;

·        Two vaporizers,Enflurane/Isoflurane/Sevoflurane; (Optional: Halothane)

·        Oxygen Flush: 25~75 L/Min;

·        Respiration Mode: IPPV, SIPPV(VCV), IMV,SIMV, PEEP, Manu, Sigh

·        Tidal Volume: 0~1500 mL;I:E: 8:1~1:10

·        Respiration Frequency: 1~99bpm;

·        PEEP: 1~10 hPa;

·        Ptr: -10~10 hPa;

·        CO2 absorber capacity: 1 kg

·        Lung compliance: ≤ 30mL/kPa;

·        IMV frequency: 1~12bpm

·        Inspiratory Plateau: 0~1S;

·        O2 Concentration: 21%~100%

·        Alarm parameter: upper /lower limit ofairway pressure, tidal volume exceed limitation, no tidal volume output, apnea,AC power malfunction, battery low power

Patient Monitor

·        12.1''TFT large screen of high resolution

·        ECG: 5-lead, gain:×2.5mm/mV ×5.0mm/mV×10mm/mV ×20mm/mV, analysis of ST segment and abnormal of heart rate(anti-defibrillate, anti-HF    electrotome)

·        Heart Rate: 20~250bpm

·        RESP: Impedance, range: 0~100bpm

·        SpO2: 0%~100%

·        Pulse Rate: 20~250bpm

·        NIBP: SBP, DBP, MBP, 10~270mmHg interval ofautomatic measurement 1~90min adjustable

·        TEMP: 0~50ºC

·        Alarm: Audio and visual alarm

·        Tendency record 96 hours

Loop part

·        Integrated design, integrated breathingcircuit

Evaporator

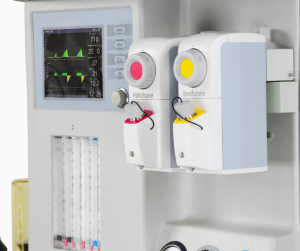

·        High-precision double evaporators configuration, enflurane or isoflurane or Sevflurane or Haloflurane

·        Concentration adjustment range: 0.5 ~ 5%VOL

·        Evaporator flow, pressure, and automatictemperature compensation function

·        Self-locking feature

Configuration

·        Vaporizer: Two vaporizers, Enflurane/Isoflurane/Sevoflurane(Option: Halothane)

·        Anesthesia gas concentration range: 0.5~5%

·        Soda lime absorption system： resistance tohigh temperature of 176 degrees Celsius.

·        ISO certificates approved
