Features

1.        Throughput is 240 samples/hour.

2.        Strips capacityis 200 strips.

3.        14 test items are optional.

4.        Accurate quantitative dripping technology avoids cross-contamination effectively.

5.        All the results are on the LCD touch screen, with all data centralised in one workstation.

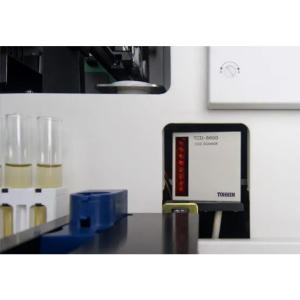

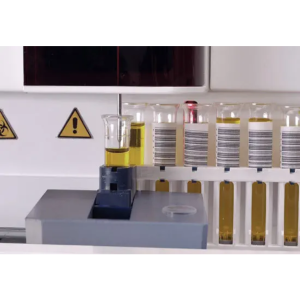

6.        Paired barcode reader is helpful for inputing patient information.

7.        The design of the STAT position gives priority to emergency samples.

8.        Waste box can collect waste strips automatically.

9.        H-800 can be connected with LIS, HIS.

10.    Combined with FUS series analyzers to be urinalysis system.

Technical Specifications

l  Test Items: Urobilinogen,Bilirubin,Ketone Bodies,Blood,Protein,Nitrite,Leukocyte,Glucose,pH,Vitamin C,Microalbumin,Specific Gravity,Turbidity,Color.

l  Test Wavelengths: 525nm,572nm,610nm,660nm.

l  Test Speed: 240 tests per hour.

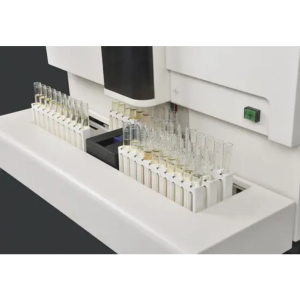

l  Sample Rack Capacity: 110 urine samples.

l  Data Storage: 10,000 test results.

l  Data Communication: RS-232 interface, parallel printing interface.

l  Display Screen: 6.4-inch LCD screen.

l  Printer: Built-in thermal printer.

l  Power Supply: 100~240VAC 50Hz/60Hz.

l  Power Consumption: 200VA.

l  Dimensions: 660mm * 545mm * 533mm.

l  Weight: 65kg.
